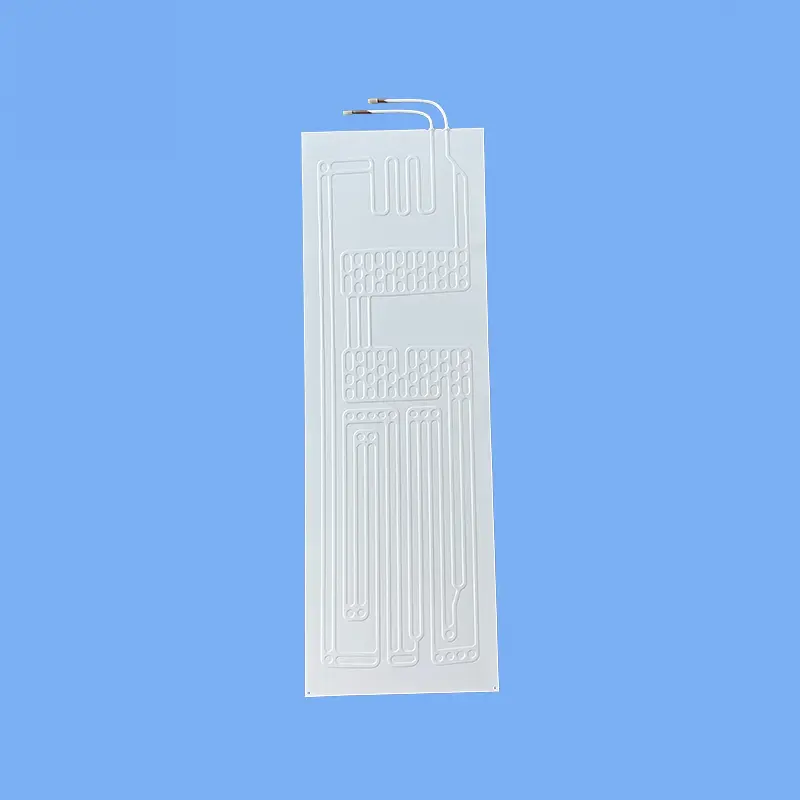

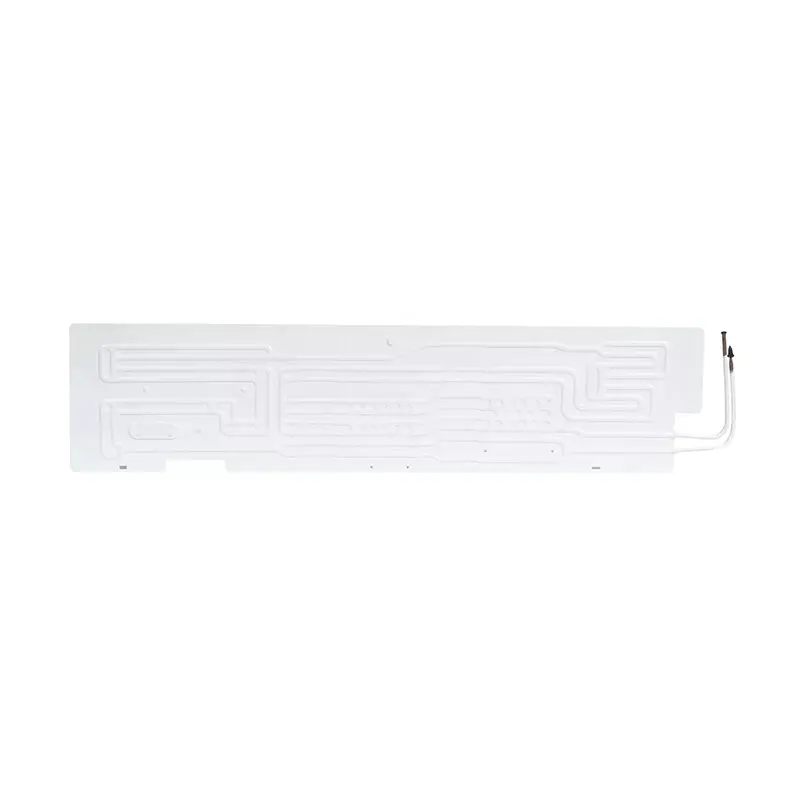

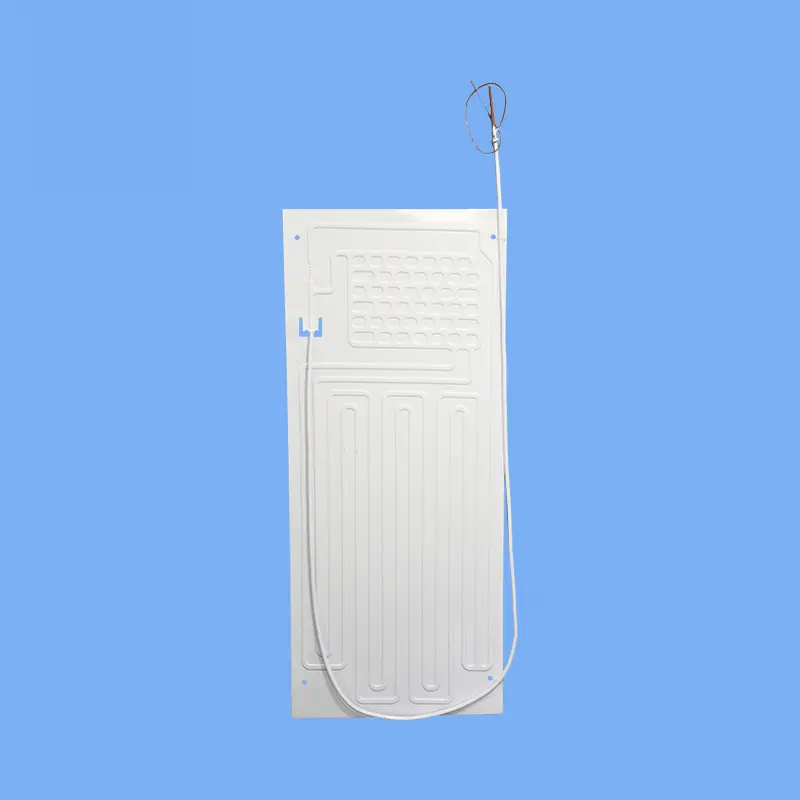

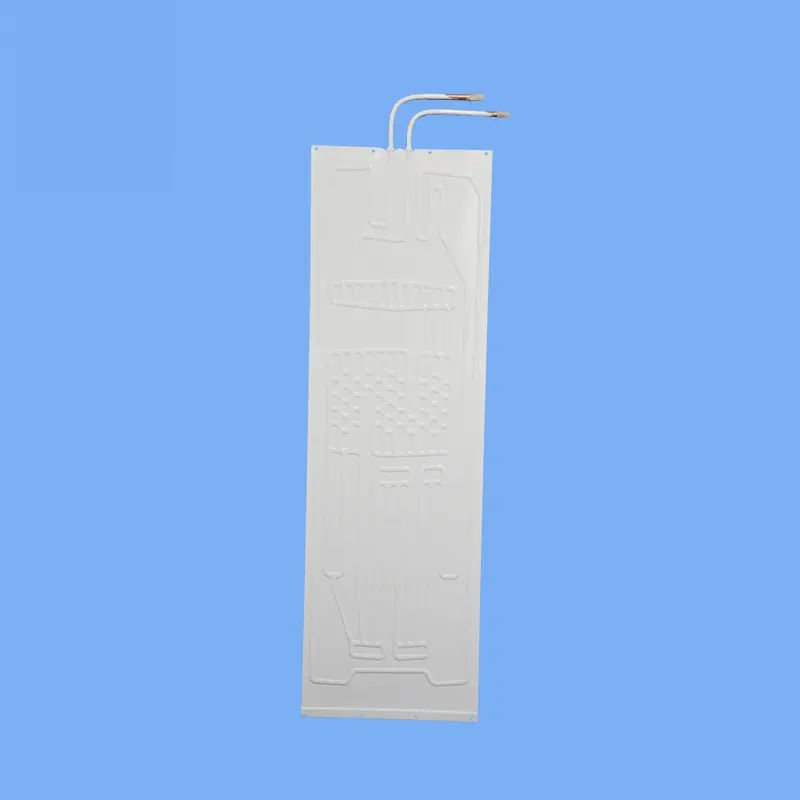

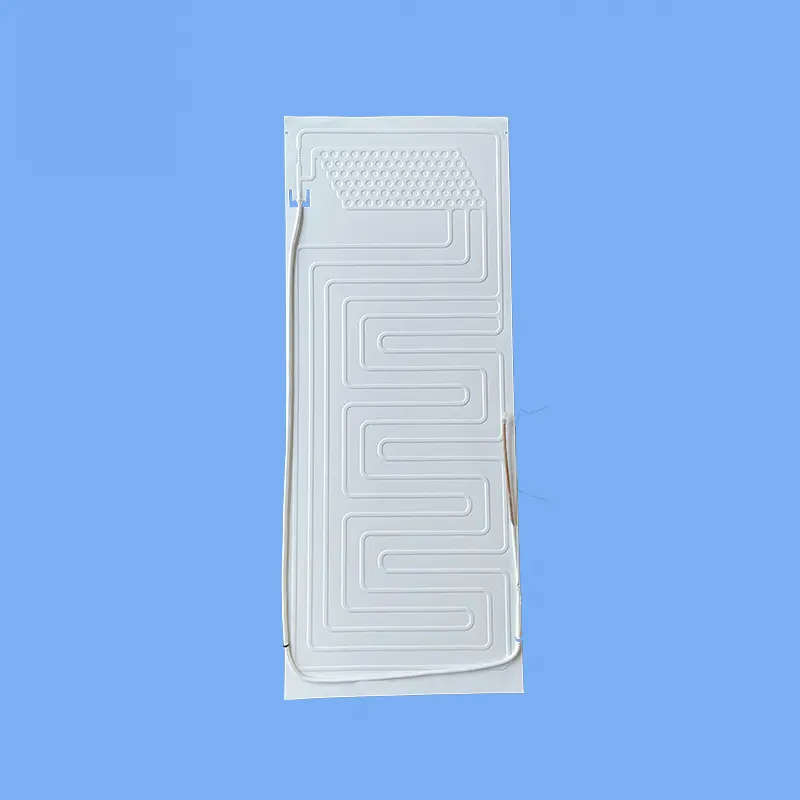

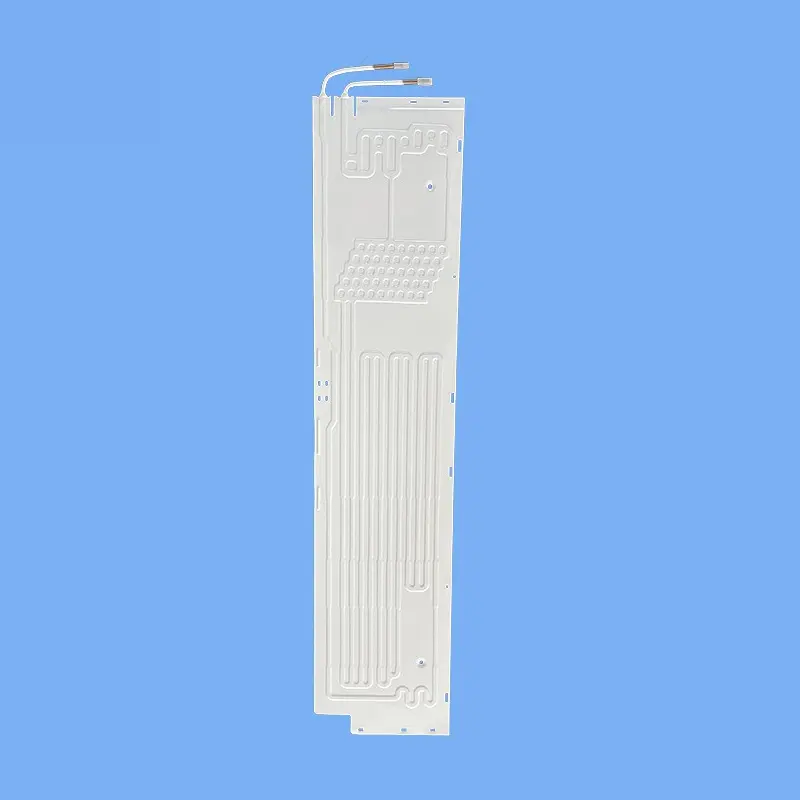

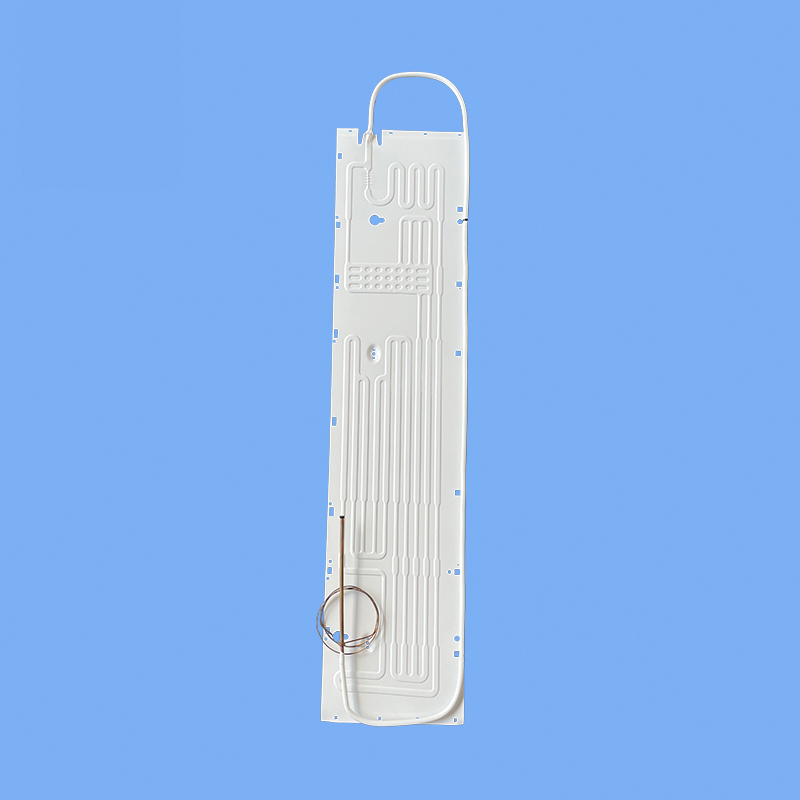

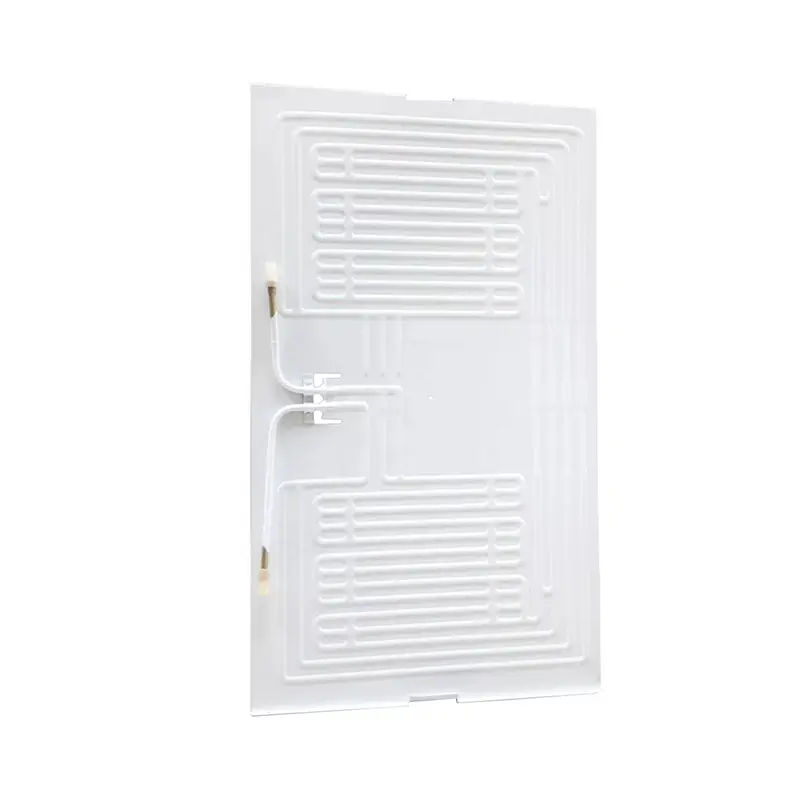

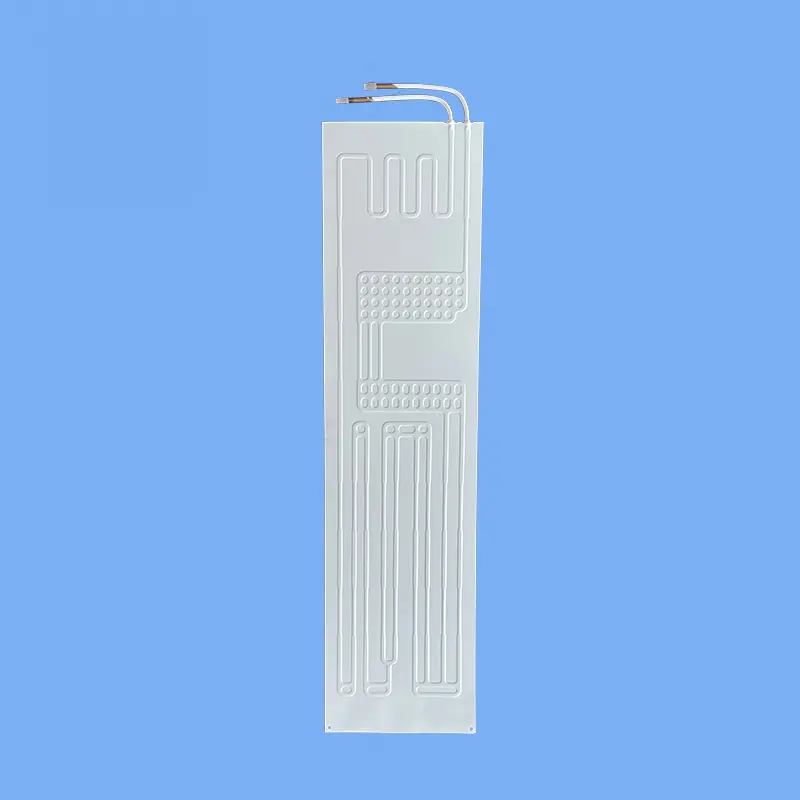

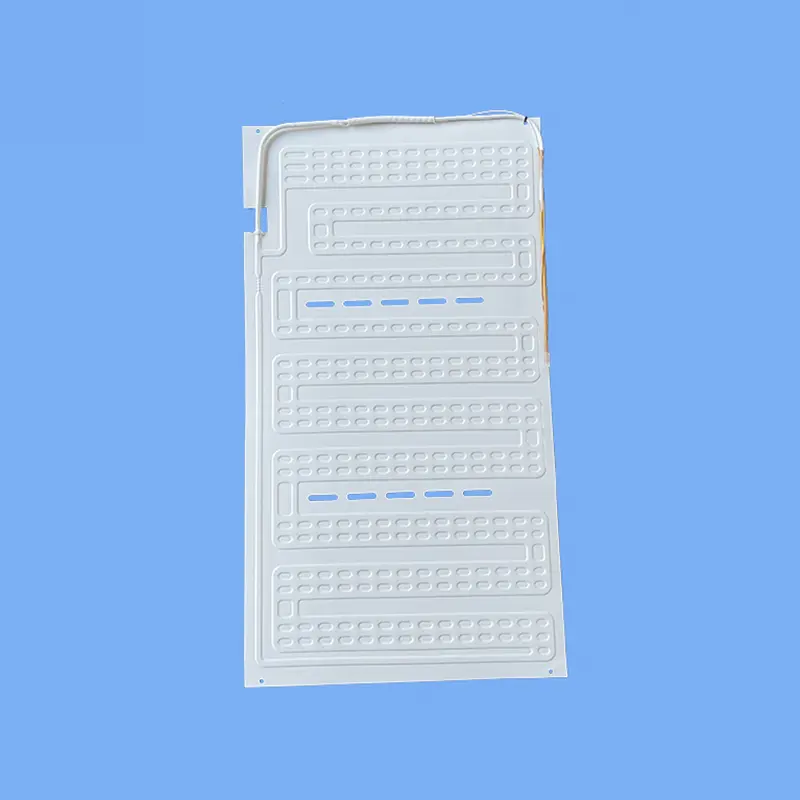

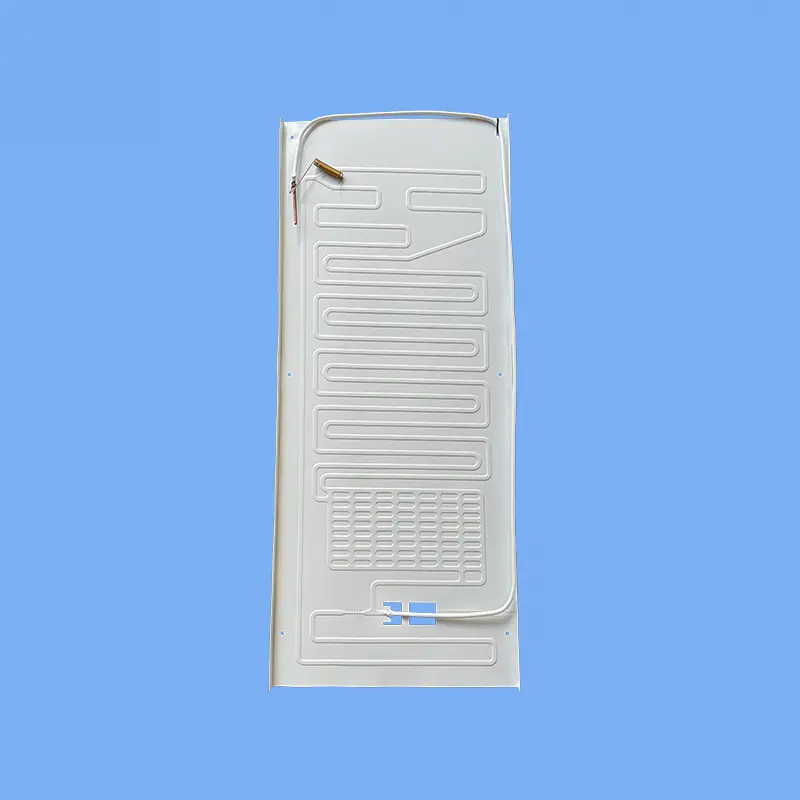

Roll bonded evaporator Aluminum Plate Evaporator
Main function
✅ Super heat exchange - corrugated fin + internal threaded tube design, heat exchange efficiency increased by 35%
✅ All aluminum anti-rust - aviation grade aluminum alloy material, salt spray corrosion resistance of 10 years +
✅ Lightweight and energy saving - 40% less weight than copper tube evaporator, reducing equipment load
✅ Out of the box - standardized interface design for mainstream brand compressors
✅ Environmentally compatible - Supports new refrigerants such as R134a, R290, and R600a
Product description
1. Innovative structure and material
Core pipe: internally threaded aluminum pipe (wall thickness 0.8-1.2mm), enhanced refrigerant turbulence
Fin process: hydrophilic aluminum foil corrugated fin (pitch 2.5-4mm optional) Welding technology: nitrogen protected brazing, solder joint strength ≥15MPa
2. Performance advantage
Fast frosting: Optimize the nano coating on the surface of the fin, and increase the uniform frosting speed by 20%
Low noise operation: wind resistance reduced by 18%, running noise ≤38dB(A)
Maintenance-free design: no welding residue, avoid the risk of system clogging
3. Application scenario
Small-scale refrigeration equipment: Widely used in small refrigerators, mini freezers, small display cabinets and other equipment to meet the refrigeration needs of small spaces.
Industrial refrigeration: Applied in some industrial cooling scenarios with relatively less stringent refrigeration requirements, such as small industrial chillers and local environmental cooling equipment. The aluminum plate evaporator is favored due to its cost-effectiveness and performance characteristics.
Special refrigeration equipment: In refrigeration equipment with requirements for equipment weight, such as vehicle-mounted refrigerators, the lightweight advantage of the aluminum plate evaporator makes it a suitable choice.
Technical parameter list
| Project | Parameter details |
| Model | EVA-2024 (customizable) |
| Applicable refrigerant | R134a/R600a/R32 |
| Working pressure | 0.5~3.0MPa |
| Pipe diameter | Φ5mm/Φ8mm (optional) |
| Fin spacing | 3mm/5mm/8mm |
| Length range | 200-1200mm (cutting supported) |
| Certification standards | ISO9001, CE, RoHS |

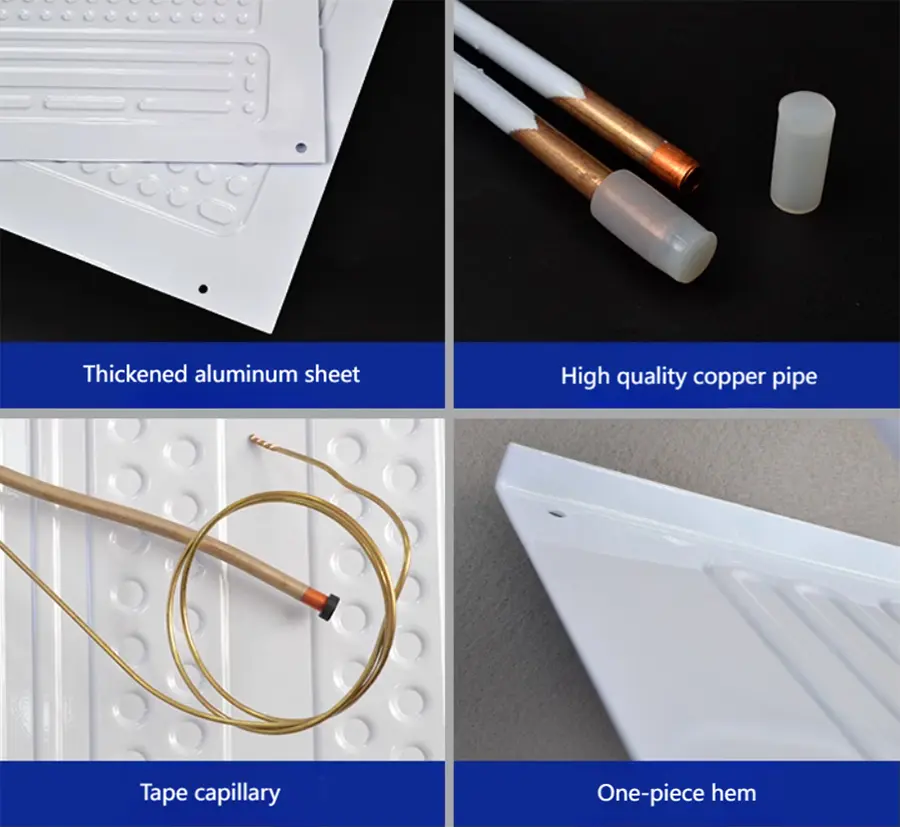

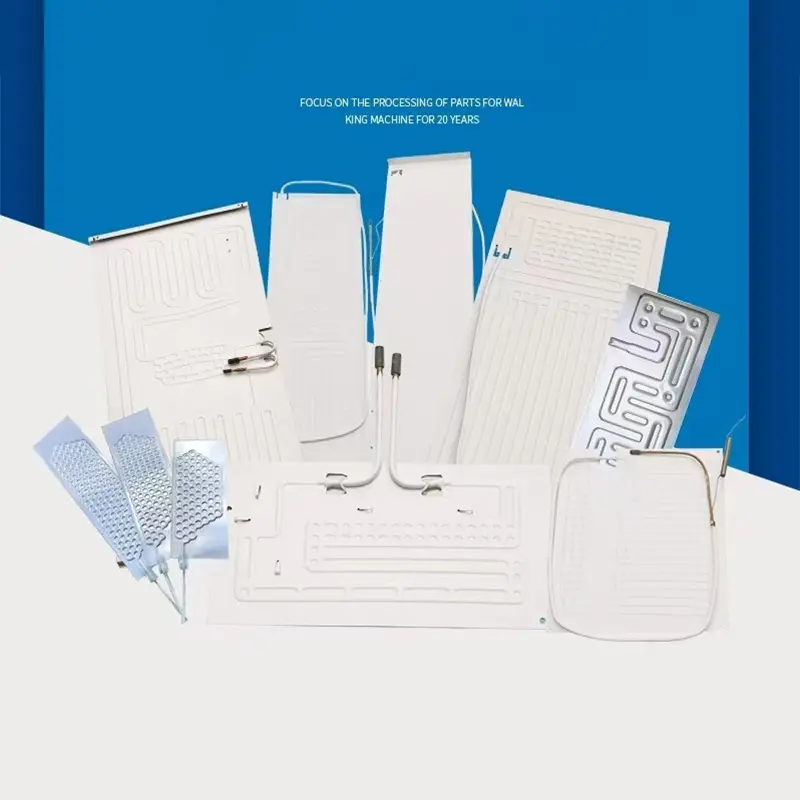

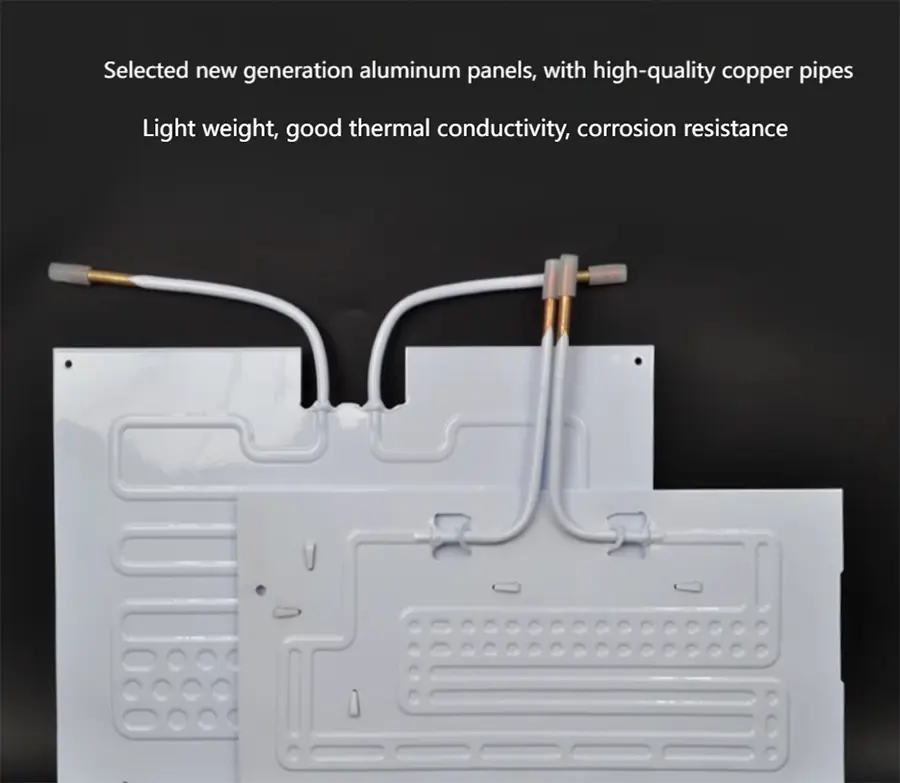

Product details

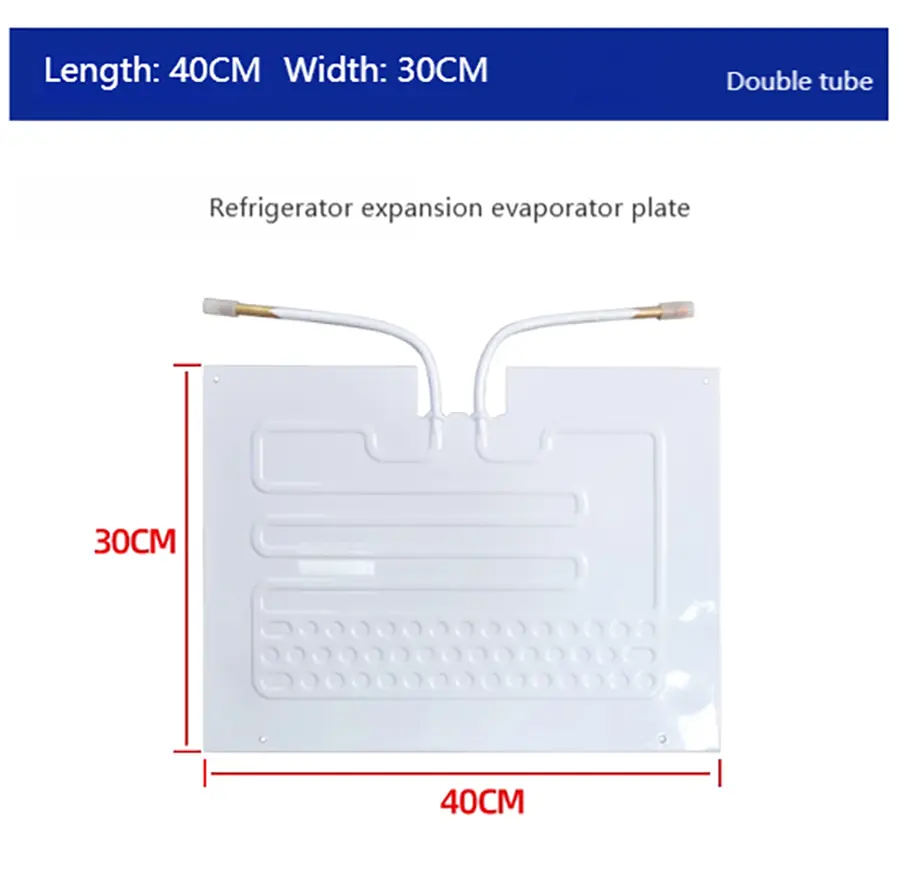

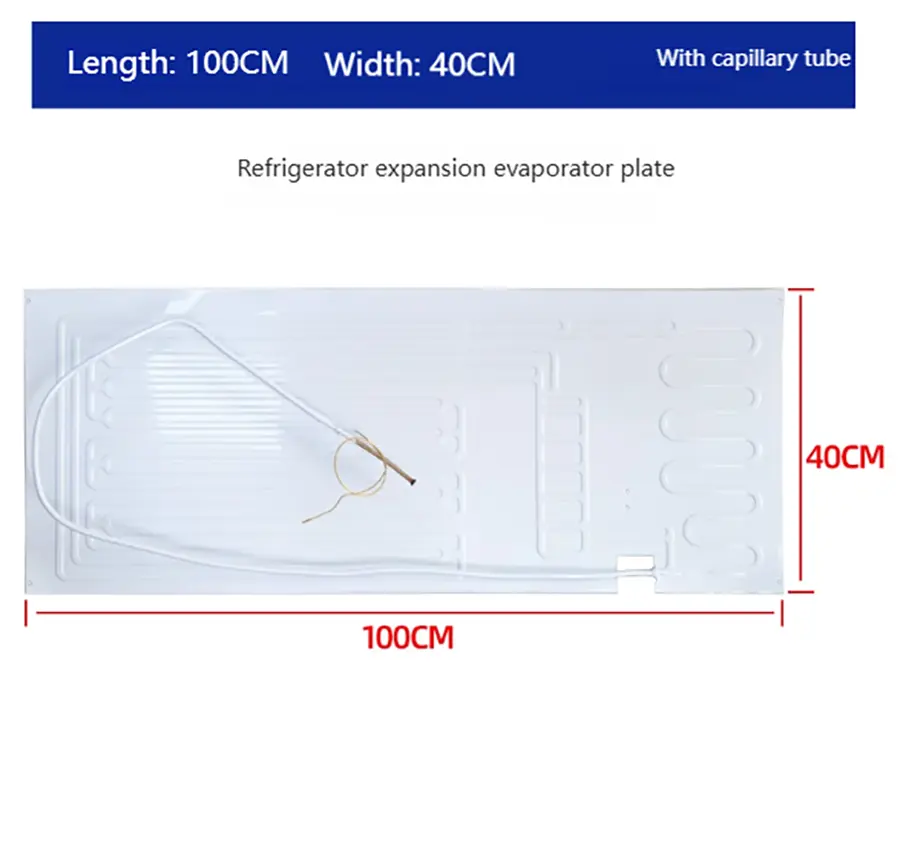

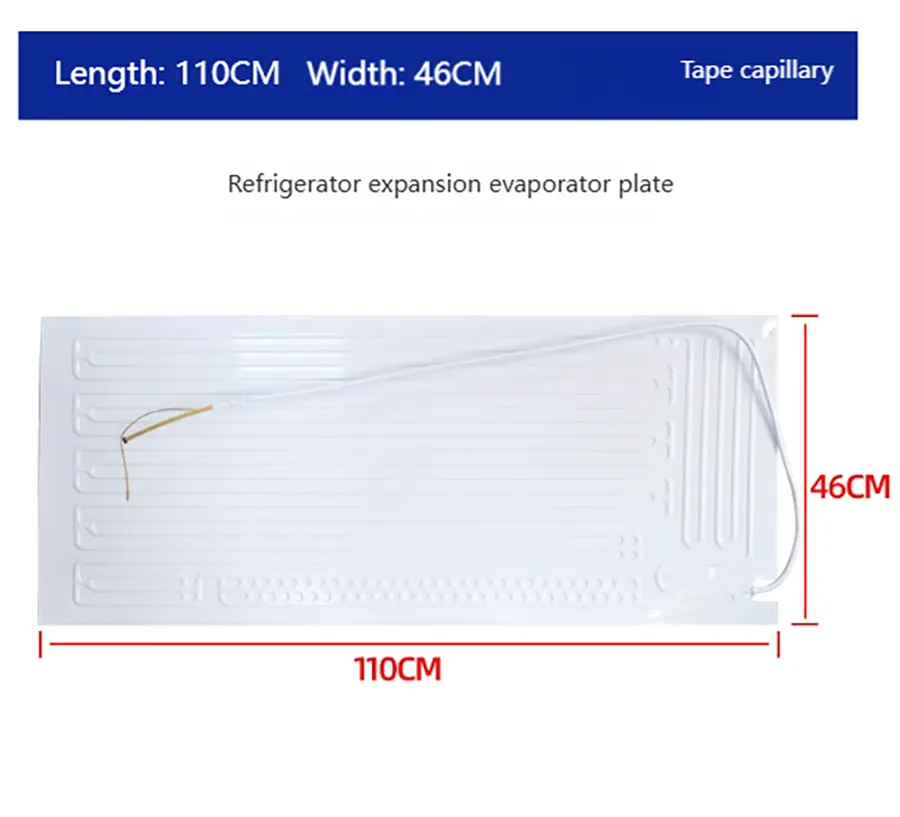

Product specification
Note: all size are TAOJUN standard,other size can be made on request.

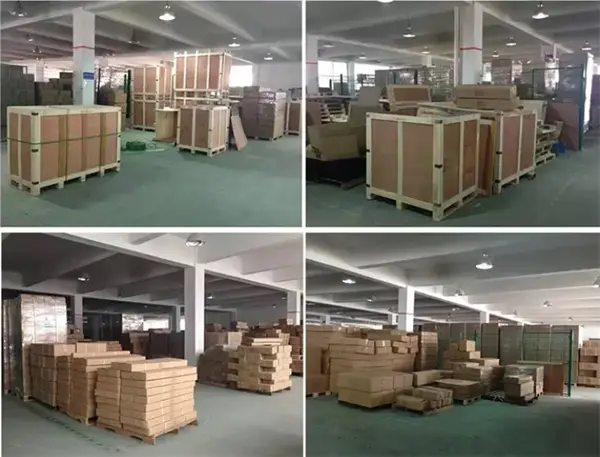

Packing and delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certificates
