High Quality Copper Brazing Rod Phosphor Copper Solder

Copper brazing alloy refers to the alloy material used for brazing on copper substrate. These alloys usually have a low melting point and can melt and fill the joint gap without melting the copper substrate, forming a good metallurgical bond with the copper substrate.

product details

Material

Cu、P.

Advantages

① Easy to install and disassemble: Good fluidity during welding, can flow into small spaces.

② Moderate melting point: Good fluidity during welding, perfect performance under gas flame, induction and furnace brazing methods, outstanding oxidation resistance at high temperature, excellent corrosion resistance and fatigue resistance after welding, suitable for high temperature and high pressure environment.

③ Good joint strength and conductivity: It can quickly transfer heat and achieve precise temperature control, ensuring stable and efficient welding process, perfect for MAPP, MAP, propane and oxygen acetylene gas welding gun settings.

④ No need to use brazing flux: When brazing copper with copper-phosphorus brazing alloy, the phosphorus in the brazing alloy plays the role of brazing flux.

Application Scope

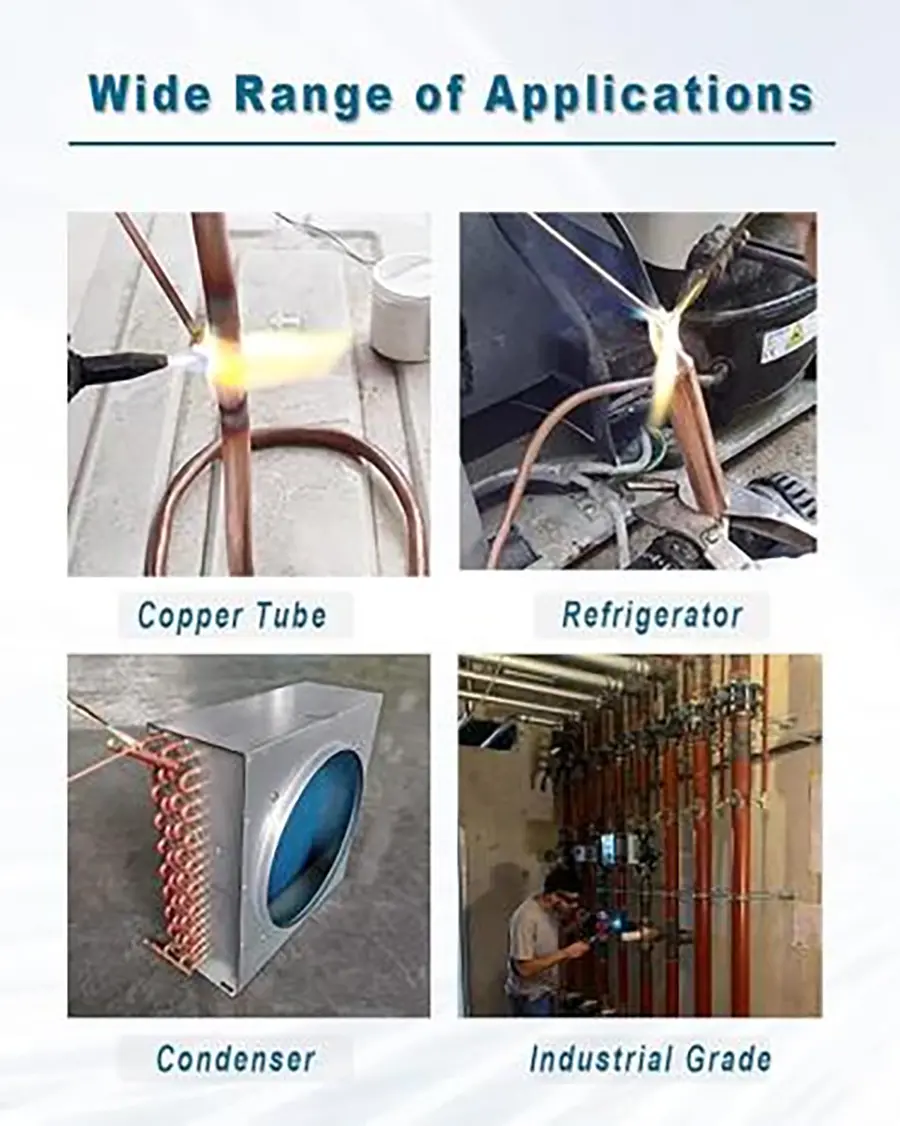

A popular and economical solution for HVAC, plumbing and mechanical repairs, used for brazing of copper and copper alloys in motor, instrumentation and refrigeration industries, very suitable for gas welding, contact welding and some furnace welding, suitable for brazing copper to copper, brass and bronze joints in air conditioners, freezers, evaporators, heat exchangers, water heaters, etc.

Product Paramenters

Code	Related Standard	Chemical Composition		Melting Temperature		Code	Related Standard
Code	Related Standard	P%	Cu%	Solidus℃	Liquidus℃	Code	Related Standard
JCuP-1	CWA:BCu92P	7.5-8.5	REM	710	780	JCuP-1	CWA:BCu92P
JCuP-2	CWA:BCu93P AWS:BCuP-2	6.5-7.5	REM	710	800	JCuP-2	CWA:BCu93P AWS:BCuP-2
JCuP-3		6.1-6.8	REM	710	820	JCuP-3

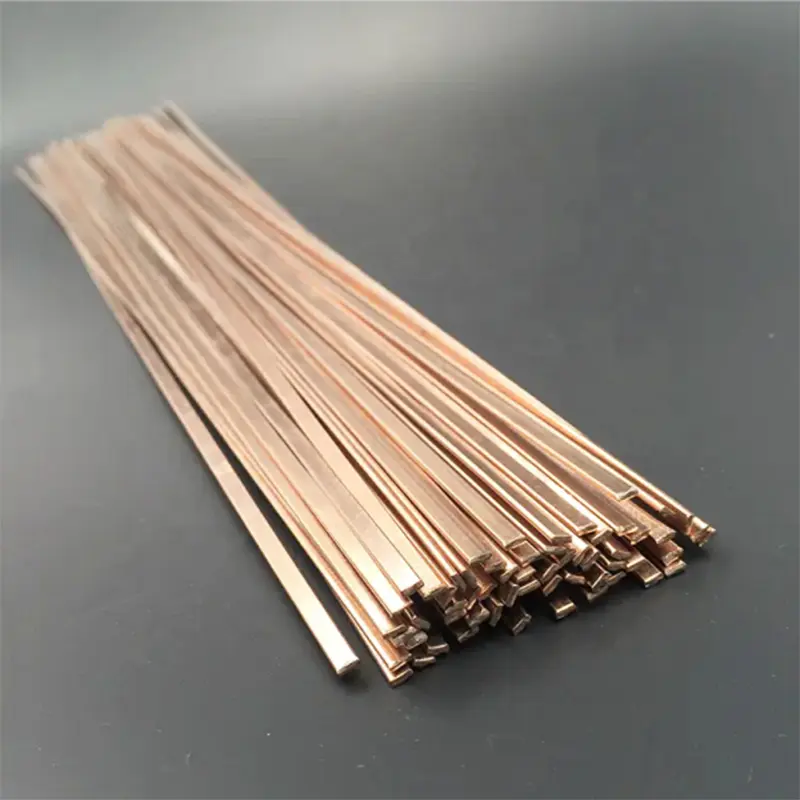

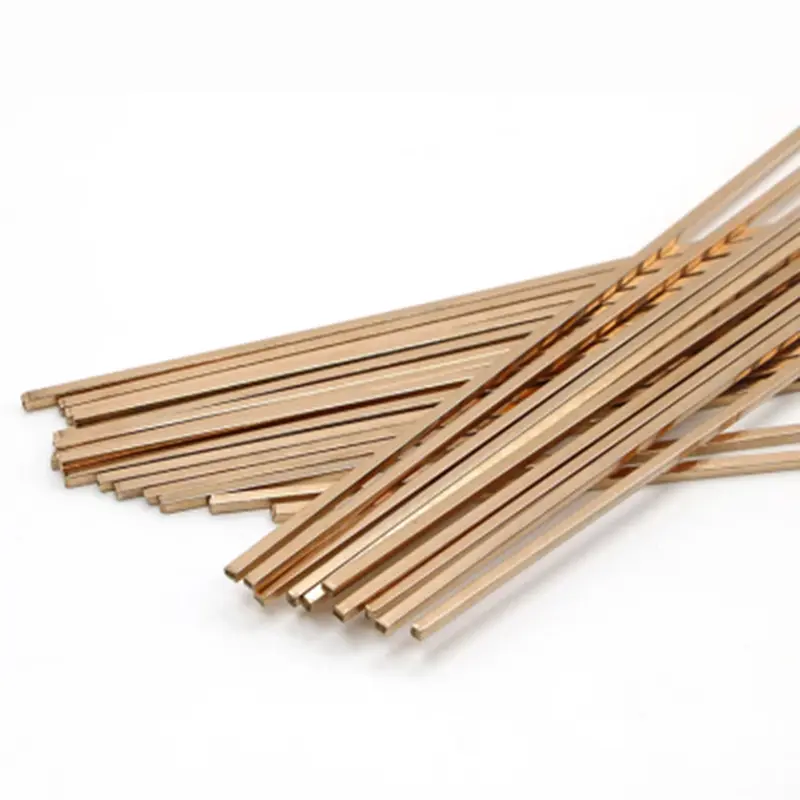

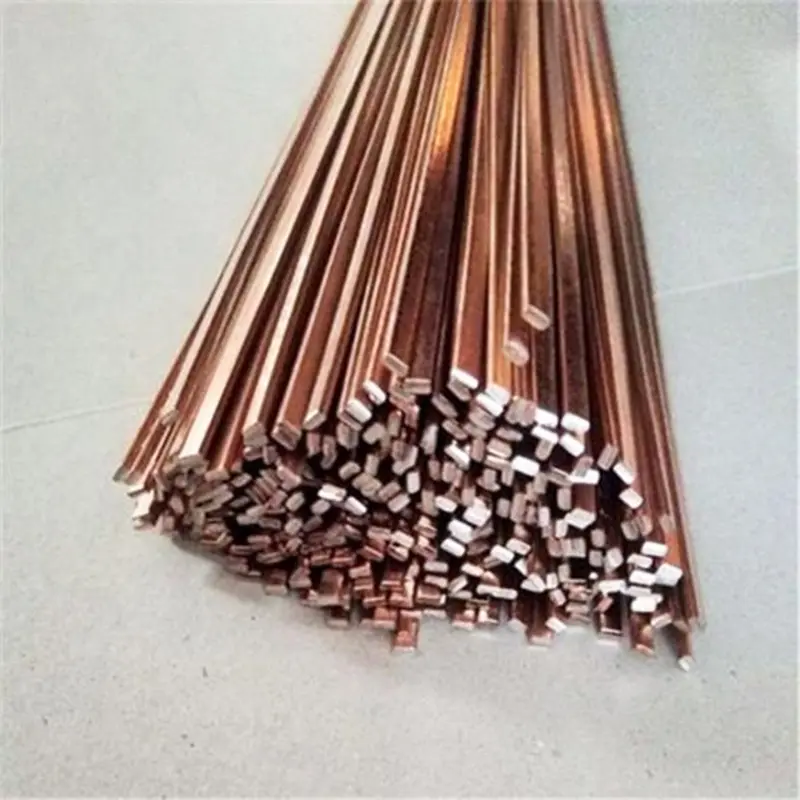

Product Size

BCuP-2 Brazing Rods Size
Flat	1.3x3.2x457mm
	1.3x3.2x500mm
Square	3.2x3.2x500mm
Round	1.5x500mm
	2.0x500mm
	3.0x500mm

Note: All sizes are Taojun standard, other sizes can be produced according to customer requirements.

Photos

Package

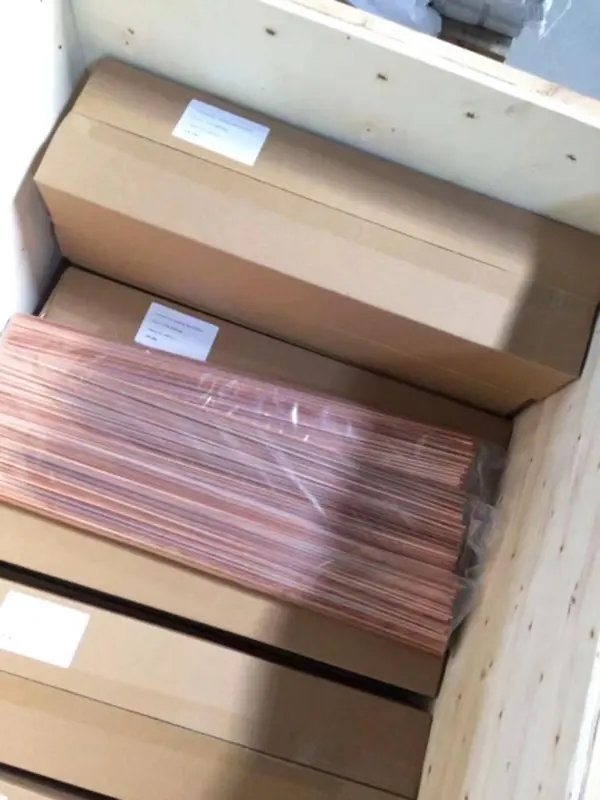

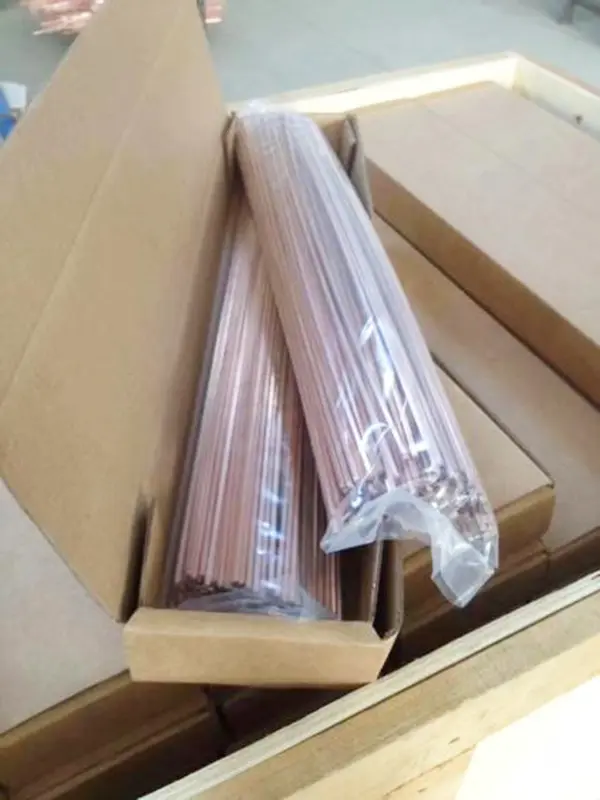

Standard export seaworthy packing: with polyethylene film including drier, put them in carton; 5.67kgs/pvc bag, 11.34kgs/carton box;or 5kgs/pvc bag, 10kgs/carton box;
