Charging hose

The charging hose is a type of plastic tube with three different colored layers, commonly used for identification and differentiation of different piping systems or cable bundles. These layers not only facilitate easy recognition but also enhance its structural stability. It possesses excellent chemical resistance, heat resistance, and impact resistance, and is widely applied in industrial, construction, and electrical fields, such as chemical plant installations, high - rise building wiring, and electrical equipment assembly.

    Advantages

    1. Sanitary Safety: The inner layer material conforms to the national drinking water sanitary standard, ensuring the safety of water quality during long-term use.

    2. High Durability: The middle layer of fiber-reinforced material significantly enhances the pipe's resistance to pressure and impact, extending its service life.

    3. Wide Temperature Range: The outer layer of weather-resistant polyethylene material can be used stably within a temperature range of -40℃ to 95℃, adapting to extreme climatic conditions.

    4. Easy Installation: The charging hose has good flexibility and memory, facilitating bending installation, reducing the use of joints, and lowering the risk of leakage.

    5. Energy-Efficient and Efficient: The smooth inner wall reduces fluid resistance, lowering energy consumption during the transportation process.

    6. Environmentally Friendly and Recyclable: All materials are recyclable, meeting environmental standards, and reducing the impact on the environment.

    Features

    Chemical resistance: The charging hose can resist the corrosion of many chemical substances, suitable for a variety of industrial environments.

    Heat resistance: can withstand high temperatures, generally used in the range of-40℃ to 100℃. Impact resistance: has good impact resistance, not easy to rupture or deformation.

    Flexibility: The charging hose has certain flexibility, easy to install and bending.

    Insulation: has good insulation performance, suitable for electrical applications.

    Model

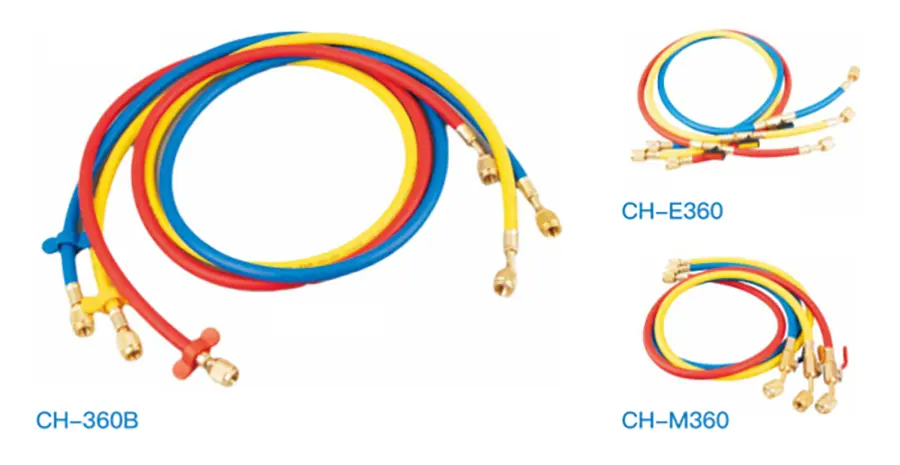

    charging-hose

    Specification

    Number

    Length

    Applicable refrigerant

    Working Pressure

    Blasting Pressure

    Common Thread

    CH-336A

    36"(91CM)

    R12/22/502

    500PS

    2500PSI

    RYB:1/4SAE*1/4SAE

    CH-360A

    60(152CM)

    CH-372A

    72”(182CM)

    CH-336B

    36"(91CM)

    R134/404/407

    600PS

    3000PS

    RYB:1/4SAE*1/4SAE

    CH-360B

    60(152CM)

    CH-372B

    72”(182CM

    CH-336C

    36"(91CM)

    R410/32

    800PS

    4000PSI

    R/B:1/4SAE*5/16SAE Y:1/4SAE*1/4SAE

    CH-360C

    60”(152CM)

    CH-372C

    72”(182CM)

    CH-336D

    36"(91CM)

    R1234yf

    800PS

    4000PS

    RYB:1/4SAE*1/4SAE

    CH-360D

    60”(152CM

    CH-372D

    72(182CM)
